當前位置：首頁 > 產品總匯 > SF6系列

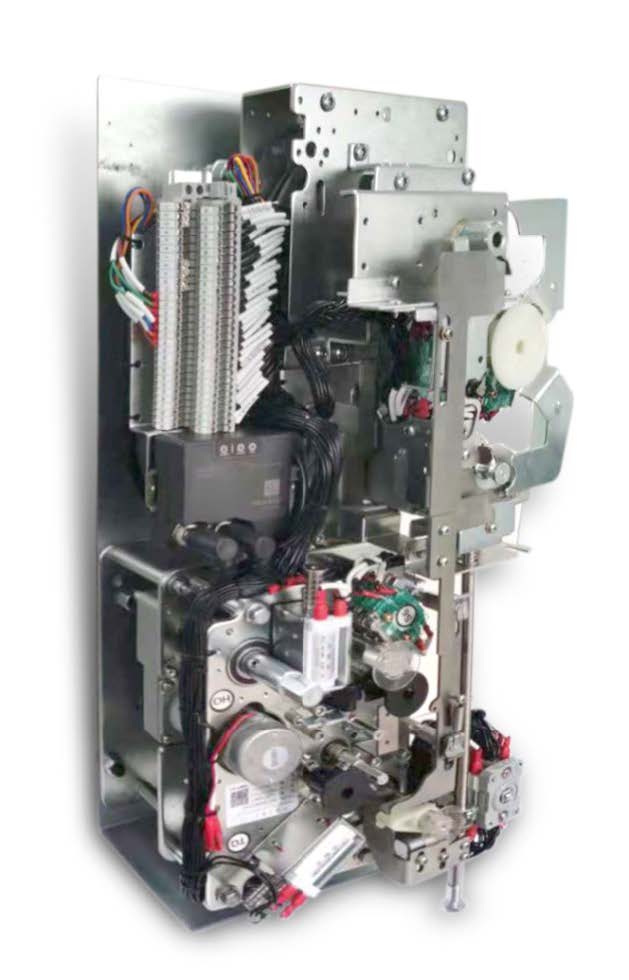

上隔離下斷路器機構

所屬：SF6系列

返回列表

服務熱線：0577-61988186
打印當前頁
放入收藏夾
發郵件給我

分享到:

此產品相關資料下載

• 產品描述

產品概述：

 XGN口-12所配CT型彈簧操作機構為額定電壓12KV交流金屬封閉式永磁開關的配套設備，該機構采用連桿傳動，開關在電磁控制下帶到手分機構合閘，通過手分操作軸連桿傳動將開關分閘。動作過程配有行程。工作位置為合閘、分閘二個工位，合閘與分閘配有過中彈簧使行程能到位可靠。該產品具有體積適中，安裝使用方便和適用性強的特點。

 XGN port-12 equipped with CT type spring operating mechanism is rated voltage 12KV AC metal enclosed permanent magnet switch supporting equipment, the mechanism adopts connecting rod transmission, the switch is brought to the hand division mechanism under electromagnetic control, and the switch is opened by the hand operation shaft connecting rod transmission. The course of action is accompanied by a stroke. The working position is two stations, closing and opening, and the closing and opening are equipped with an over-center spring to make the stroke in place and reliable. The product has the characteristics of moderate volume, easy installation and use, and strong applicability.
